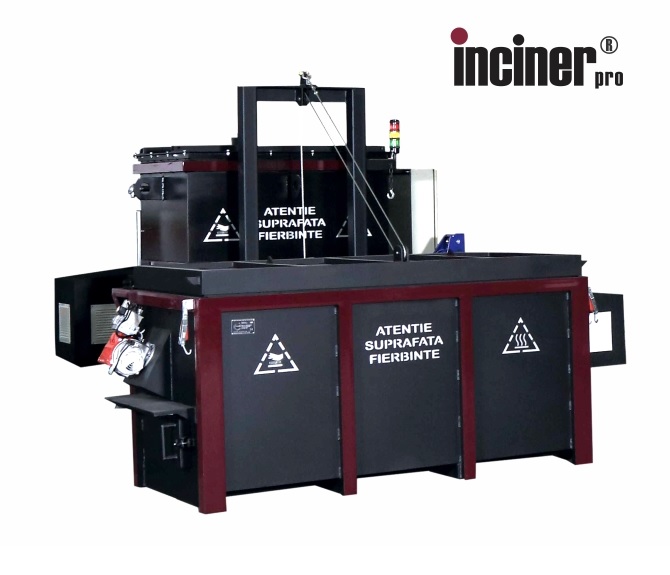

IncinerPro i850
The IncinerPro i850 animal waste incinerator is a fixed main combustion chamber incinerator, recommended for the incineration of medium and large-volume waste, especially animal waste with a higher moisture load or lower calorific value (e.g.: poultry, slaughterhouse and meat processing waste).
Standard incinerator equipment
- 2 combustion chambers (main and post-combustion), to be in full compliance with the requirements of Regulation EC 1069/2009 and EU 142/2011
- 3 fully automated, independent burners (2 in the main combustion chamber and 1 in the post-combustion chamber)

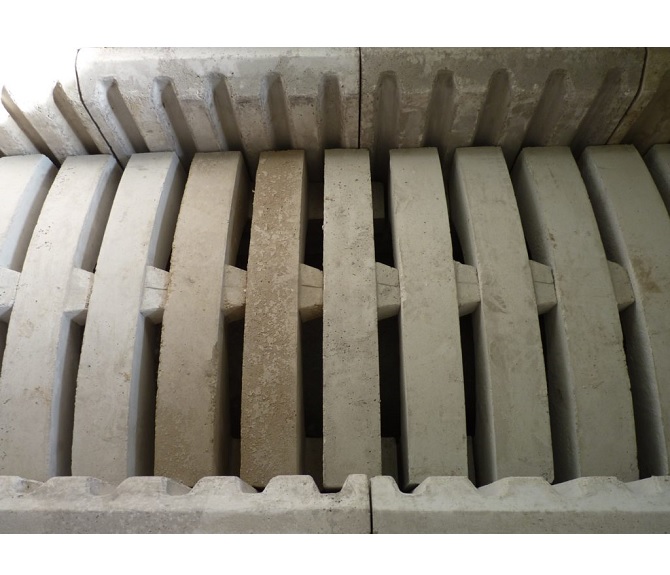

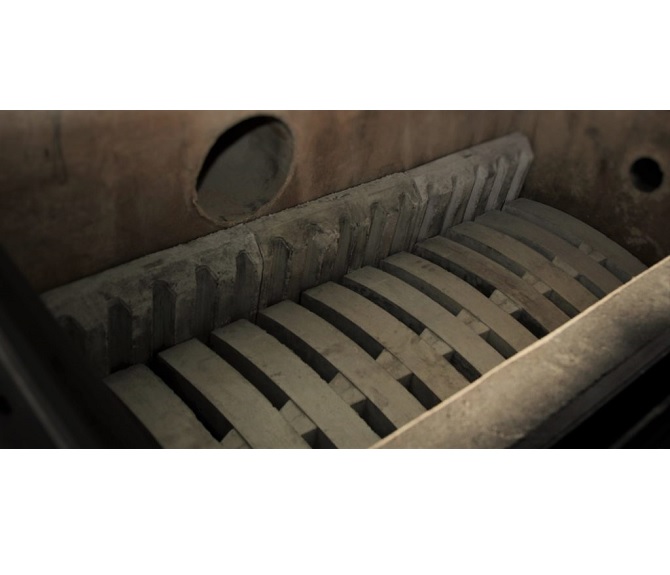

- Particular system of burning waste, including from below, due to the concrete structure (grill) and the diametrically opposed burners, arranged at different heights.
- Control panel with touch-screen technology
- Automatic system for programming and controlling combustion parameters and cycles
- Visual and audible alarm system
- Refractory concrete resistant to high temperatures (1,500 °C)
- Thermocouples for maintaining temperatures at set values
- Double ventilated chimney

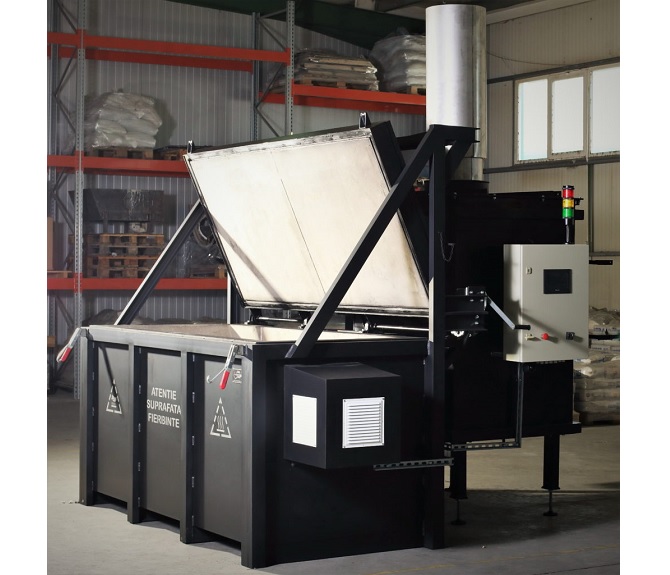

- Waste feed door operated by pulley, with safety system against accidental closing
- Ash removal door
- Remote-controlled waste loading system (optional)
- Heat recuperator (optional)
| IncinerPro i850 | |
| Loading method | up |
| Main chamber volume | 1,24 m³ |
| Loading capacity * | up to 850 kg |
| Burn rate * | up to 150 kg/h |
| Gas retention time | min. 2 sec. at min. 850 °C |
| Overall dimensions (L x W x H) | 4,5 x 3,1 x 2,4 |
| Weight | 6,05 tons |
*The burn rate, loading capacity, fuel consumption are parameters depending on the animal waste (type, volume, species, age of the waste, humidity, density, how it was mixed), the incinerator loading method, the number of burners, the technical condition of the burners and the incinerator, the fuel quality.
Since no two waste batches are identical, the operator(s) must load a mixture of different wastes for a better incineration process. A correct mixture of animal wastes will ensure a better burn rate and lower fuel consumption. We recommend that you carefully read the instructions, user manual and technical notes displayed on the IncinerPro incinerator, in order to obtain the best burn rate and fuel consumption in the burning process of the waste generated by your activity.
